Riverguard: Mutation Rules for Finding Vulnerabilities

Welcome to the third blog post in our series on Riverguard, our automated Solana smart contract vulnerability discovery tool. From our first post, you may already know what Riverguard is and how it works:

• Riverguard automatically tests for exploitable bugs in ALL programs currently deployed on Solana Mainnet — open-source or not
• It does this by using transactions interacting with a smart contract as a template for basic “fuzzing”
• The “fuzzing” consists of mutating and locally re-executing the transactions in ways that uncover common vulnerabilities
• Riverguard has already uncovered numerous loss-of-funds bugs worth millions of dollars

In our second post, we told you that we don’t exploit the vulnerabilities Riverguard finds. Instead, we store them and make them available to the contracts’ developers — you. You also saw how you can get access to these findings for your own smart contract for free and with no setup on your part, thanks to generous support from the Solana Foundation.

In this third post, we’ll go through some of the basic mutation rules (“fuzzcases”) that we’ve implemented so far. You’ll see how they work and what kind of vulnerability they detect. Hopefully, you’ll come away with a better understanding of how to interpret any potential vulnerabilities Riverguard detects, as well as what kind of vulnerabilities we still see quite often in the wild.

Introduction¶

In this post, we’ll go through the following seven fuzzcases.

They’re representative of some of the vulnerabilities we still see quite often when auditing contracts, even though the underlying bug is usually fairly basic. Indeed, we have dozens or even hundreds of hits for most of these fuzzcases, showing that these vulnerability types are far from a thing of the past.

Fuzzcase Internals¶

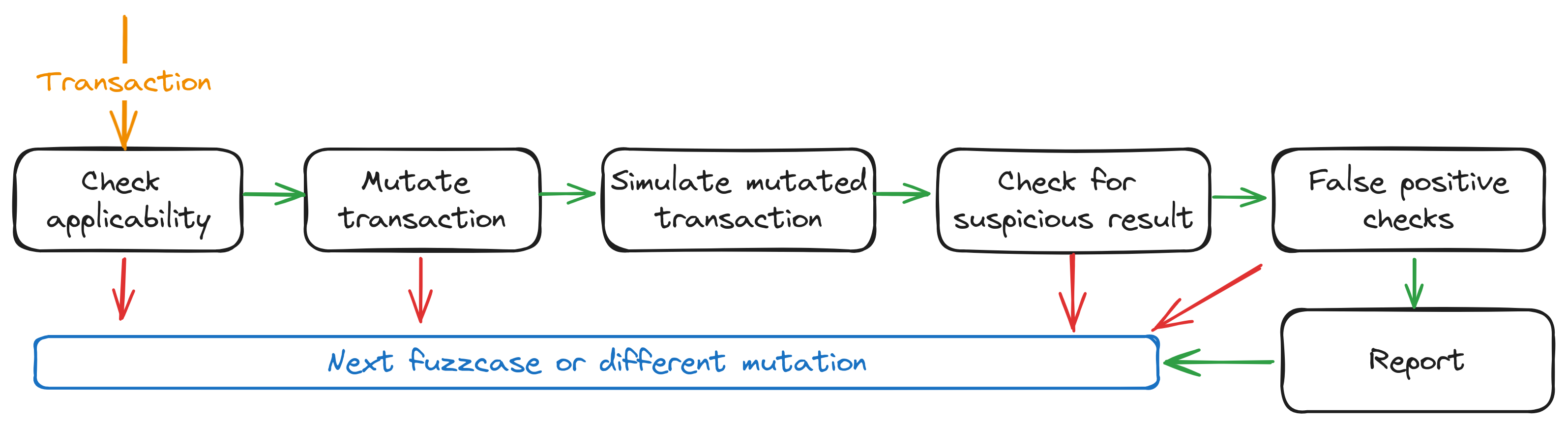

Once a transaction is fed into a fuzzcase, it usually follows the flow depicted in Figure 1:

Subsequently, we either try a different mutation (if, for example, there are two SPL transfers in one transaction, we fuzz both), or we move on to the next fuzzcase.

Now let’s see these fuzzcases and how they work in detail.

Arbitrary Account¶

The Arbitrary Account fuzzcase tries to identify one of the most basic bugs found on Solana: Missing account checks.

fn process_instruction(
    program_id: &Pubkey,
    accounts: &[AccountInfo],
    instruction_data: &[u8],
) -> ProgramResult {
    let account_info_iter = &mut accounts.iter();
    let assumed_state_acc = next_account_info(account_info_iter)?;

    // MISSING:
    // assumed_state_acc.owner == &program_id or
    // assumed_state_acc.key == STATIC_KEY or
    // some derivation check
    // ...

    let state = State::try_from_slice(&assumed_state_acc.data.borrow())?;
    //... read values from state
}

The basic idea is as follows. If an instruction gets an account for which neither the account key nor the owner is verified, that account can be replaced by an attacker-controlled account with arbitrary malicious data.

We check this by looping over every non-executable, non-empty account in a transaction, replacing its key and owner and rerunning the transaction. If the modified transaction succeeds, the account was not verified and is susceptible to an attack. Since this procedure by itself is prone to many false positives, we conduct several more checks. Let’s talk about those.

False Positive Checking¶

The Riverguard framework offers the possibility to record the call trace of a transaction execution. In other words, we are able to inspect the current execution state after every instruction and CPI invocation. In the Arbitrary Account fuzzcase, we record the accepted accounts for every invocation. Then, we check whether the fuzzed call trace is the same as the call trace of the unmodified transaction. If this is not the case, there are probably some checks involved that prevent our modified account from being used (e.g., a cranker operating only on accounts that he owns).

Secondly, we check whether the account is used at all. We replace the accounts data with random data (while keeping the discriminator in place). If the transaction still succeeds after this, the account is probably not read at all and also isn’t prone to an attack.

If neither of these two false positive checks are positive (hence, it’s likely to be a true positive), we log the finding and report it to the central database.

This fuzzcase corresponds to the Account Data Matching and Owner Checks examples in the Sealevel attacks repository.

Create Account DoS¶

The Create Account DoS fuzzcase tackles a bug commonly found in Solana programs. The System Program offers the possibility to create an account using the SystemProgram::CreateAccount instruction. This instruction allocates space for the account, transfers the corresponding amount of rent and assigns the account to the new owner.

A sample Rust code with this bug could look like this:

pub fn create_pda(
    pda_account: &AccountInfo,
    account_len: u64,
    program_id: &Pubkey,
    initializer: &AccountInfo,
    system_program: &AccountInfo,
    seeds: &[&[&[u8]]],
) -> ProgramResult {
    let rent = Rent::get()?;
    let rent_lamports = rent.minimum_balance(account_len);
    invoke_signed(
        &system_instruction::create_account(
            initializer.key,
            pda_account.key,
            rent_lamports,
            account_len.try_into().unwrap(),
            program_id,
        ),
        &[
            initializer.clone(),
            pda_account.clone(),
            system_program.clone(),
        ],
        seeds,
    )?;
}

The problem here is that the instruction will fail if the account already has a lamport balance greater than zero. Since anyone can transfer lamports to any account, an attacker could block the creation of the account if only CreateAccount is used, potentially causing a Denial of Service depending on the program context.

This risk can be mitigated by splitting the CreateAccount operations into separate allocate, transfer, and assign instructions, provided that the account has > 0 lamports:

if pda_account.lamports() > 0 {
        let required_lamports = rent
            .minimum_balance(space)
            .max(1)
            .saturating_sub(pda_account.lamports());

        if required_lamports > 0 {
            invoke(
                &system_instruction::transfer(initializer.key, pda_account.key, required_lamports),
                &[
                    initializer.clone(),
                    pda_account.clone(),
                    system_program.clone(),
                ],
            )?;
        }

        invoke_signed(
            &system_instruction::allocate(pda_account.key, space as u64),
            &[pda_account.clone(), system_program.clone()],
            &[seeds],
        )?;

        invoke_signed(
            &system_instruction::assign(pda_account.key, owner),
            &[pda_account.clone(), system_program.clone()],
            &[seeds],
        )
    } else {
        invoke_signed(
            &system_instruction::create_account(
                initializer.key,
                pda_account.key,
                rent.minimum_balance(space).max(1),
                space as u64,
                owner,
            ),
            &[
                initializer.clone(),
                pda_account.clone(),
                system_program.clone(),
            ],
            &[seeds],
        )
    }

The fuzzcase for this is quite simple. First, we search for accounts that are created in the instruction. Those are the accounts that have zero lamports before the transaction, are not a signer in the top-level instruction (i.e., they are created as a PDA) and have data after the transaction resumed.

In the second phase, we simulate the transaction for every such account with lamports set to greater than zero.

A failure of the transaction indicates that the program is susceptible to a DoS. As the false positives here strongly rely on the context of the program (e.g., the DoSed account can be seeded arbitrarily), we do not conduct any further checks here and simply report it as is. Please keep this in mind if you find a Create Account incident in your Riverguard view.

Arbitrary Withdraw¶

The Arbitrary Withdraw fuzzcase tries to address a critical bug pattern we have found in numerous contracts. In the Withdraw instructions, the contract fails to verify that the withdraw authority actually is a signer. In code, it could look like this:

fn withdraw(
    program_id: &Pubkey,
    accounts: &[AccountInfo],
    instruction_data: &[u8],
) -> ProgramResult {
    let account_info_iter = &mut accounts.iter();
    let withdraw_authority = next_account_info(account_info_iter)?;
    let token_vault_account = next_account_info(account_info_iter)?;
    let token_vault_authority = next_account_info(account_info_iter)?;
    let destination_account = next_account_info(account_info_iter)?;
    let token_program = next_account_info(account_info_iter)?;

    // MISSING:
    // withdraw_authority.signer == true

    let (token_vault_key, _) =
        Pubkey::find_program_address([b"vault", withdraw_authority.as_ref()], program_id);
    assert_eq!(token_vault_key, token_vault_account.key);

    let (_, token_vault_bump) = Pubkey::find_program_address(
        [b"vault_authority", withdraw_authority.as_ref()],
        program_id,
    );

    invoke_signed(
        &spl_token::instruction::transfer(
            token_program.key,
            token_vault_account.key,
            destination_account.key,
            token_vault_authority.key,
            &[token_vault_authority.key],
            amount,
        )
        .unwrap(),
        &[
            token_program,
            token_vault_authority,
            token_vault_account,
            destination_account,
        ],
        [
            b"vault_authority",
            withdraw_authority.as_ref(),
            token_vault_bump,
        ],
    )?
}

We check this by first searching for a token instruction in which the source authority is not present as a signer in the transaction. This means that the instruction is signed by a PDA and therefore probably a withdraw.

Next, we mutate the transaction by removing all original signers and replacing the previous token recipient with ourselves. If this transaction still succeeds, it means that one can steal money.

The fuzzcase itself is quite false positive-proof. The only false-positive case we have ever found is the case of cranker instructions refunding a small portion of SOL to incentivize crankers.

In the Sealevel attacks repository, this would correspond to Example 0: Signer Authorization.

Unchecked Token Vault¶

The Unchecked Token Vault fuzzcase addresses the following bug. In the case of a Deposit Instruction, the contract does not verify that the receiving account is actually correct. This means we could replace the receiving token account with our own and still cause a liquidity token (for example) to be minted.

In code, the bug would look like this:

fn deposit(
    program_id: &Pubkey,
    accounts: &[AccountInfo],
    instruction_data: &[u8],
) -> ProgramResult {
    let account_info_iter = &mut accounts.iter();
    let source_token_account = next_account_info(account_info_iter)?;
    let source_authority = next_account_info(account_info_iter)?;
    let vault_account = next_account_info(account_info_iter)?;
    let state_acc = next_account_info(account_info_iter)?;
    let token_program = next_account_info(account_info_iter)?;

    // MISSING:
    // state.vault_account == vault_account

    invoke(
        &spl_token::instruction::transfer(
            token_program.key,
            source_token_account.key,
            vault_account.key,
            source_authority.key,
            &[source_authority.key],
            amount,
        )
        .unwrap(),
        &[
            token_program,
            source_authority,
            source_token_account,
            vault_account,
        ],
    )?;

    state.balances[source_authority] += amount;
}

The first step in detecting the bug in Riverguard is the same as in the Arbitrary Withdraw fuzzcase: we search for a token transfer.

Then, we replace the token recipient with the token source account and simulate the transaction. If the transfer still succeeds, we report a finding.

This fuzzcase is rather prone to false positives as there are many programs such as arbitrage bots that don’t really hold or govern any assets and therefore do not need a check for such a case. Please keep this in mind if an Unchecked Token Vault finding is reported for your contract.

Unchecked Invoke Signed¶

Solana enables programs to interact with other programs through Cross Program Invocations (CPI). This can be done using either invoke or invoke_signed functions (although invoke just is a wrapper around invoke_signed, with no seeds passed). In the context of invoke_signed, a program can include seeds for a Program Derived Address (PDA), which are then passed on as signers in the called program:

pub fn invoke_program(
    program_account: &AccountInfo,
    authority: &AccountInfo,
    authority_seeds: &[&[&[u8]]],
    <other accounts and params>
) -> ProgramResult {

    // MISSING:
    // program_account.key == program::id()

    invoke_signed(
        &program::instruction_x(
            authority: authority,
            <other accounts and params>
        ),
        &[
            authority.clone(),
            program_account.clone(),
            <other accounts>.clone(),
        ],
        authority_seeds,
    )?;
}

In most scenarios, it’s crucial to verify that the program being called (here just program_account) is indeed the intended one. If this is not done, there could be a malicious attacker who inserts its own program and might exploit some funds or functionality with the added PDA signature.

This is where the Unchecked Invoke Signed fuzzcase comes into play. Riverguard introduces a feature that permits the monitoring of every new CPI call and inspection of the current state. The fuzzcase operates by iterating through each CPI-called program, substituting a NOOP (no operation) program and then simulating the mutated transaction.

Should the NOOP program be executed with new signatures that were not present initially, this is flagged as a finding.

There are some cases where an attacker cannot further exploit the signature — if, for example, it cannot call other programs like the Token program with which it could leverage the signature into something useful.

This bug can also be found in the Sealevel attacks repository at Example 5: Arbitrary CPI

Unchecked Instruction Sysvar¶

The Unchecked Instruction Sysvar fuzzcase seeks to protect from the bug that caused one of the biggest hacks in Solana history, the Wormhole Hack. The bug is found in the use of the Instruction sysvar. Solana instructions can inspect their surrounding instructions by using the Instruction sysvar. At this time, it is crucial to check that the assumed sysvar pubkey is actually Sysvar1nstructions1111111111111111111111111. Otherwise, an attacker could replace the assumed instruction data with its own manipulated instructions:

fn process_instruction(
    program_id: &Pubkey,
    accounts: &[AccountInfo],
    instruction_data: &[u8],
) -> ProgramResult {
        let account_info_iter = &mut accounts.iter();
        let instruction_sysvar = next_account_info(account_info_iter)?;

        // MISSING:
        // instruction_sysvar.key == instructions::id()

        let data = instruction_sysvar.data.borrow()
        // now deprecated, use `load_instruction_at_checked` instead,
        // which does the check automatically
        let first_ix = instructions::load_instruction_at(0, data);
        ...
}

The fuzzcase basically just replaces the sysvar key, simulates the transaction and checks if it still succeeds. If it does, we run it again with an empty sysvar to check if the instruction sysvar is read at all. If both these checks are positive, we report a finding.

Look at the code of Example 10 of the Sealavel attacks repository for further information about this bug.

Unchecked Sigverify CPI¶

The unchecked Instruction Sysvar fuzzcase is somewhat similar to the Instruction Sysvar fuzzcase. Solana offers the possibility to verify a secp256k1 signature using the native secp256k1 program at KeccakSecp256k11111111111111111111111111111. A user can insert data, signature and pubkey into the program’s instruction data, and it will succeed if the signature is valid and fail if it is not.

At a later stage, a program can inspect the previous instructions using the Instruction Sysvar and verify whether the expected data, signature and pubkey match, thereby assuming the signature is valid:

fn process_instruction(
    program_id: &Pubkey,
    accounts: &[AccountInfo],
    instruction_data: &[u8],
) -> ProgramResult {
    let account_info_iter = &mut accounts.iter();
    let instruction_sysvar = next_account_info(account_info_iter)?;
    let secp_ix = instructions::load_instruction_at_checked(0, &instruction_sysvar);

    // MISSING:
    // secp_ix.program_id == solana_program::secp256k1_program::id()

    let secp_data_len = secp_ix.data.len();
    if secp_data_len < 2 {
        return Err(InvalidSecpInstruction.into());
    }

    let sig_len = secp_ix.data[0];
    ...
}

It is, of course, important to verify that the expected secp256k1 program key is the correct one.

The fuzzcase seeks to find this case and replaces the secpk256k1 program key with a random key while keeping the data intact. If the execution still succeeds, we report a finding.

Deduplication of Findings¶

Imagine encountering a “Self Transfer” bug in one of your program’s instructions. Whenever a transaction triggers this bug, it is flagged by Riverguard. However, there is an issue: the accounts and instruction data usually vary since different users interact with the program using different parameters. This means that we must build some sort of deduplication system to triage the overwhelming load of reported bugs and their associated storage needs efficiently.

We have addressed this issue by devising a heuristic method to group and filter potential bugs. For each transaction, we generate a hash using the following parameters:

• program_id
• fuzzcase_id
• instruction discriminator (for which we generate three distinct hashes based on discriminator sizes of 1, 4, and 8 bytes)
• fuzzcase-specific data

If the transaction’s hash already exists in the database, we simply update the count of findings and the most recent discovery date without storing the complete transaction data. Otherwise, we create a new entry in the database.

While this heuristic method has proven to be quite effective, there’s still a risk of overlooking transactions that might represent new bugs. For instance, if there are two distinct “Self Transfer” bugs within the same instruction that only trigger under different input parameters, our system might inadvertently miss one. to

Summary¶

We hope this deep-dive into these fuzzcases will help you understand and navigate your Riverguard findings. We are keen on eliminating all findings generated by Riverguard, which should mitigate the most common and straightforward vulnerabilities in all deployed and utilized smart contracts.

For this project, we partnered with the Solana Foundation to offer this service free of charge. If you haven’t done it yet, you can now register for your Riverguard account on riverguard.io.

Riveguard is one of our largest projects to date. However, while Riverguard is powerful, it cannot replace a comprehensive security audit. Its capabilities are limited to common problems that can be detected on-chain and depend on the volume of transactions associated with your smart contract. If your contract hasn’t seen significant traffic, Riverguard may not be able to detect potential issues.

We hope Riverguard will make your smart contracts more secure, as it is an excellent first layer of protection. Nonetheless, if you are looking for a more in-depth security audit, we are here to assist you. Having found the largest number of loss-of-funds bugs both in Solana itself and in Solana smart contracts, we believe we host the best auditors on Solana. Contact us via contact@neodyme.io to set up an audit, or to talk smart contract security.
